Features: Robust; 200C; 4-20mA
Technology: Semiconductor and RTD probes; ambient, contact, or insertion.
What is HotBoss?

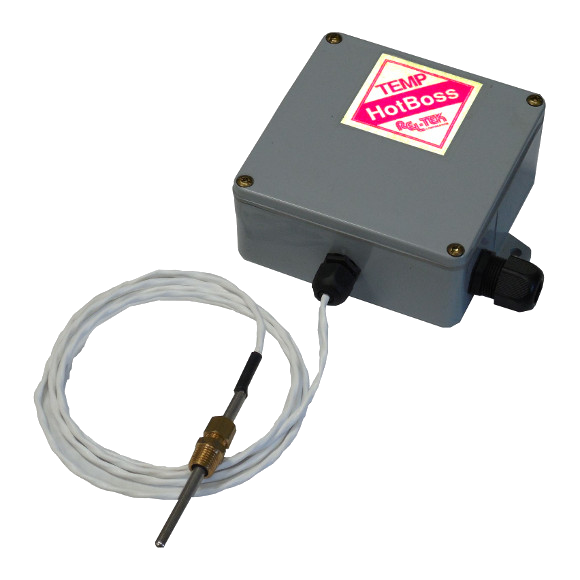

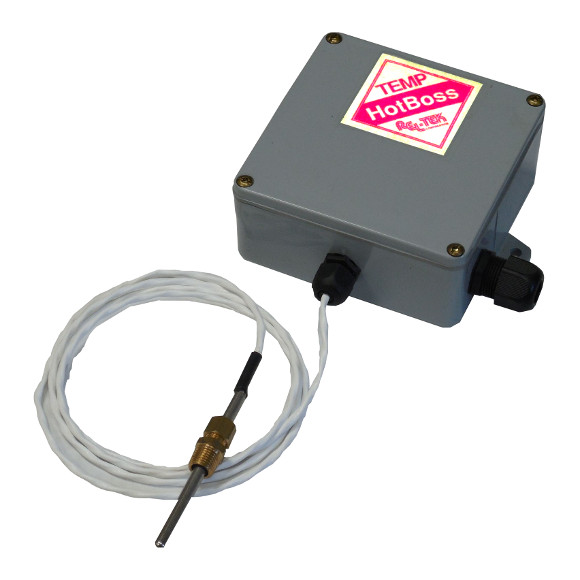

The HotBoss®*100 is a versatile, multi-range temperature transmitter.
Operating from 10-30VDC, this unit generates a 4-20mA analog signal proportional
to the probe temperature, over the designated range. Probes are available in
three forms, 1) ambient air, 2) flat, copper, bolt-down contact for bolting
to pillow block or motor mount and 3) tubular, SS with 1/4" NPT bushing
for replacing a grease fitting on a gear box. For ambient monitoring under 60C
(140F), probe is usually installed on control box. Above 60C, mount probe externally
using 6-ft long cable supplied.
What are the features of HotBoss?
| Application |
Model |
Size and interface |
Max temp |
| A - Ambient |
HB100-SMR-A |
1"Dx4"L, probe/cover |
60C (140F) |
|
|
(1/2" M-conduit ftg) |
100C (212F) |
| B - Contact |
HB100-SMR-C |
1"Wx4"Lx.1"thk, flat |
200C (392F) |
| (bolt down) |
|
(two 3/8" dia holes on |
.8" centers) |
| C - Grease fitting |
HB100-SMR-G |
1/4" D x 6" L tube |
200C (392F) |
| (insertion) |
|
(1/4" NPT M-threads) |
|
Custom probe styles and ranges may be specified, including low/high extremes
of -20C (-4F) to 200C (392F). Controller unit (5x5x2") is wall mounted.
Install one probe at each bearing. A master control box with power supply, sensor
electronics, set-point relays, digital meter, alarm strobe/horn and control
outputs can be supplied.
| Item |
|
Model |
Code |
| HotBoss*100-A |
(ambient, free air) |
HB100-A |
7.1800 |
| " |
-G (grease ftg, insert) |
HB100-G |
7.1805 |
| " |
-C (contact, bolt on) |
HB100-C |
7.1810 |
| " |
Electronics control module |
HB100-ECM |
7.1800/10 |
| " |
Ambient probe |
HB100-SMR-A |
7.1800/15 |
| " |
Grease/insertion probe |
"
-G |
7.1800/25 |
| " |
Contact probe |
"
-C |
7.1800/30 |
| " |
Stand alone controller |
HB100/SA/CTLR |
3.8011 |
The HotBoss*100 is MSHA-classified G, H and L, issues 95/32/40 respectively
under Rel-Tek's "MultiBoss" file for use in hazardous areas. Barriers
are available. Call for more details or order.
HotBoss is a registered Rel-Tek trademark.
|
