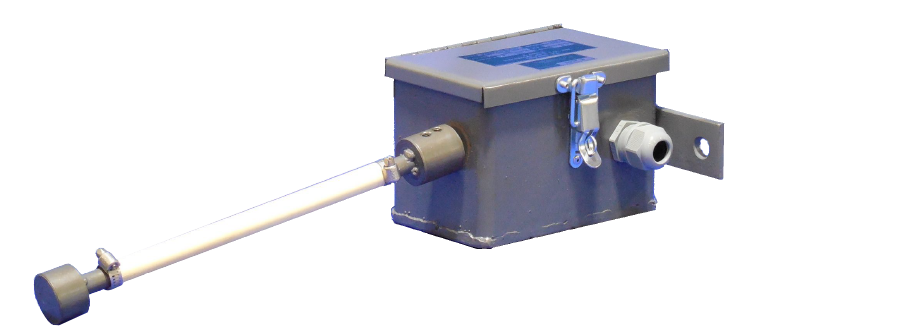

Tilt Switch
Paddle Switch (Tilt) is designed to trip when the extension’s travel exceeds the pre-set points. Upon proper installation, any build up of coal that  exceeds an acceptable amount will trigger the Micro Switch to activate controlling the flow of the coal by starting or stopping the belt. It can be used at dumping points to control spillage. Mount near coal dumping points; do not allow normal flow of coal to touch extension. Wire to the normally open contacts of switch and the pre-determined digital input of the controller (if applicable).
Specification Sheet
| Physical- |
| Size | Enclosure: 9”L x 4”H x 4”D
Overall: 18”L x 4”H x 4”D (Adjustable extension up to 24”) | | |
| Weight | 9 pounds (4.1 kg) | | |
| Construction | Painted steel enclosure
Hinged lid w/latch | | |
| Hardware | Coated Steel | | |
| Terminals | (3) Common, Normally Open, Normally Closed | | |
| Cable access | (1) 1” hole, with cord grip | | |
| Electrical- |
| Contact voltage | 600VAC max. | | | |
| Contact Current | Maximum 4 Amp | | | |
| Activation | Micro-Switch | | | |
| Environmental effects- |
| Temperature | 0-46C (32-110F) | | |
| Humidity | 5-95% non-condensing | | |
| Altitude/pressure | None | | |
| Warranty 1-year | | | | Rev. 180615 |
