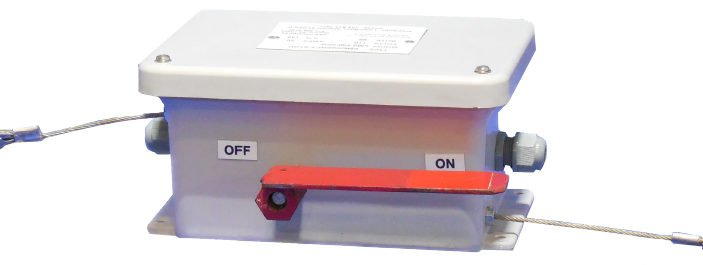

Pull Key
On/OFF Pull Cord Switch (Pull Key) provides quick response shut-off of equipment. The Pull Cord Switch is designed with manual
 operation and control hand lever located on the side of the unit, along
with an Indicator Flag. The Flag is in the “Upright” position when the switch is in the ON mode, and the Flag is “Down” in the OFF mode. Upon proper installation the Pull Cord Switch’s Micro-Switch contacts
provide shut-down of equipment when the pull cord is used as an emergency shut off. Mount near conveyor belt. Wire to the normally open contacts of switch and the pre-determined digital input of the controller
(if applicable).
Specification Sheet
| Physical- |
| Size | Enclosure: 10”L x 7”W x 5”H
Overall: 22”L x 7”W x 5”H
(8”H when flag is activated) | | |
| Weight | 7 pounds (3.2 kg) | | |
| Construction | Fiberglass enclosure
Hinged lid w/screws closure | | |
| Hardware | Coated Steel | | |
| Terminals | (2) No polarity | | |
| Cable access | (1) 1” hole, with cord grip | | |
| Electrical- |
| Contact voltage | 125, 250, 480 VAC | 125 VDC | 250 VDC | |
| Contact Current | Maximum 1.5 Amp AC | ½ Amp DC | ¼ Amp DC | |
| Environmental effects- |
| Temperature | 0-46C (32-110F) | | |
| Humidity | 5-95% non-condensing | | |
| Altitude/pressure | None | | |
| Warranty 1-year | | | | Rev. 180615 |
