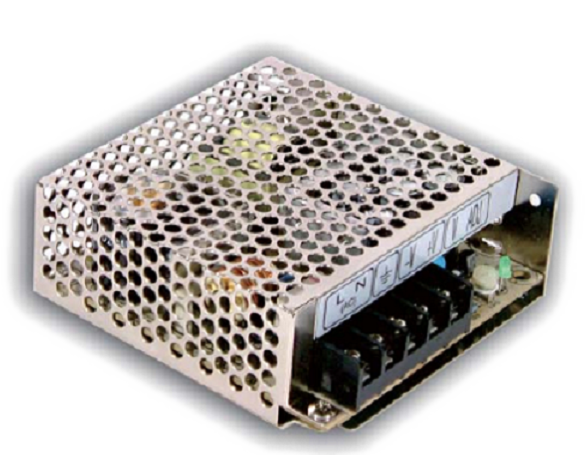

RT RS50 |
RT RS75 |
|
|
|
|
|
| RT RS100 |

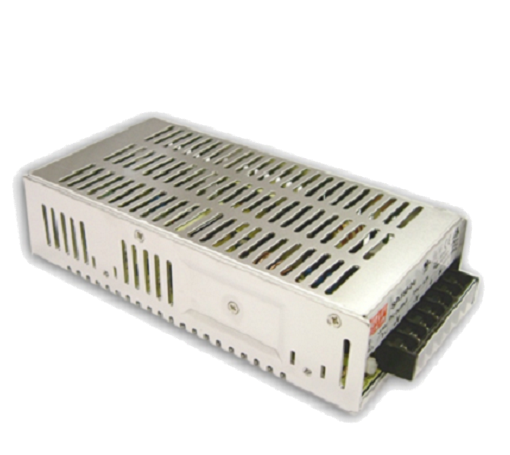

RT SP150 |

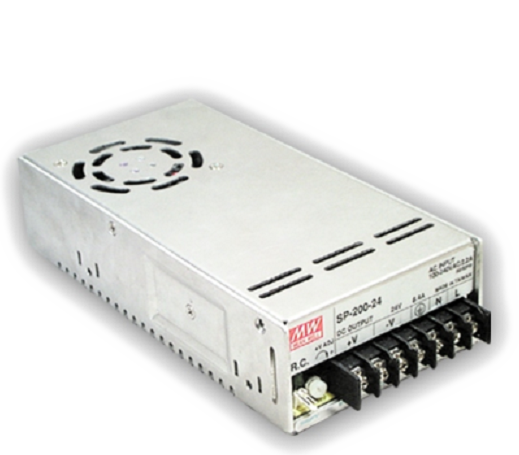

RT SP200 |
RT SP240 |
|
|
|
|
|

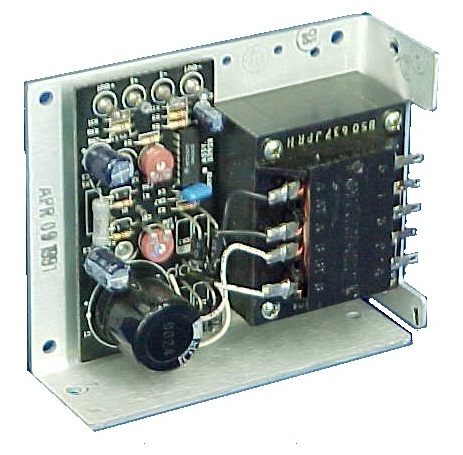

| RT-P01-28-1 |

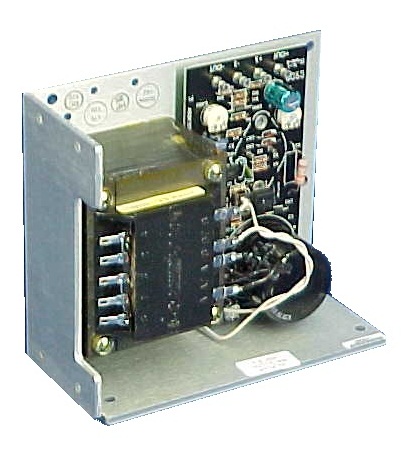

RT-P01-28-2 |
RT-P01-28-4 |
EZ-Comm Barrier (Optical Isolater) |
Contact Sales
These MSHA approved Power Circuit Barriers are available based on the chart below.
Power Circuit Barriers (PCB) |
MSHA Approval
|
|
| Linear PCB Model | Wattage | OutPut Voltage DC | Isolation I/P-O/P |
| RT-POI-28-1 | 28 Watts | 28 | 3750VAC |
| RT-POI-28-2 | 56 Watts | 28 | 3750VAC |
| RT-POI-28-3 | 84 Watts | 28 | 3750VAC |

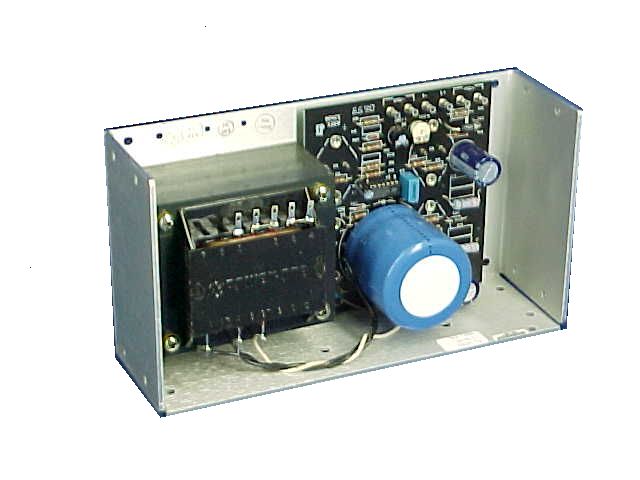

| RT-POI-28-4 | 112 Watts | 28 | 3750VAC |
|
| Switching PCB Model | Wattage | OutPut Voltage DC | Isolation I/P-O/P | Isolation Resistance |

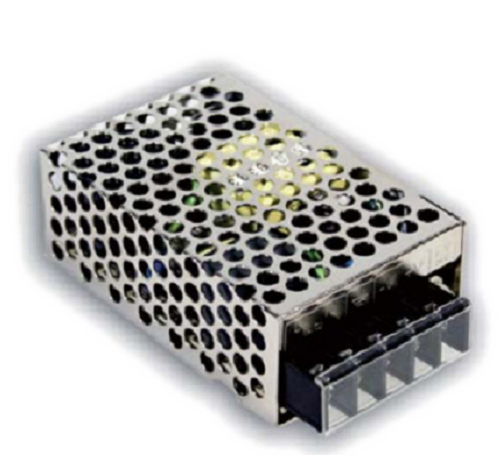

| RT-RS25 Series | 25 Watts | 3.3, 5, 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |
| RT-RS50 Series | 50 Watts | 3.3, 5, 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |

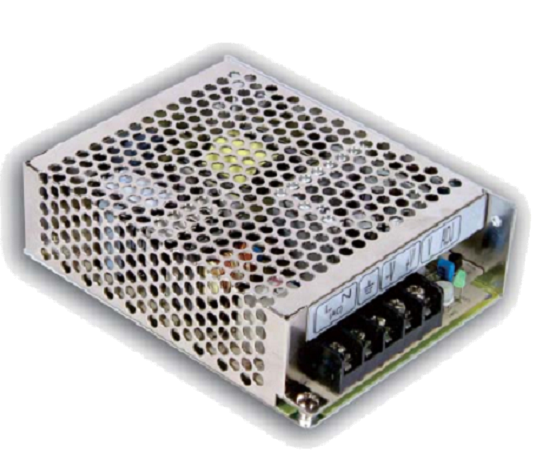

| RT-RS75 Series | 75 Watts | 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |

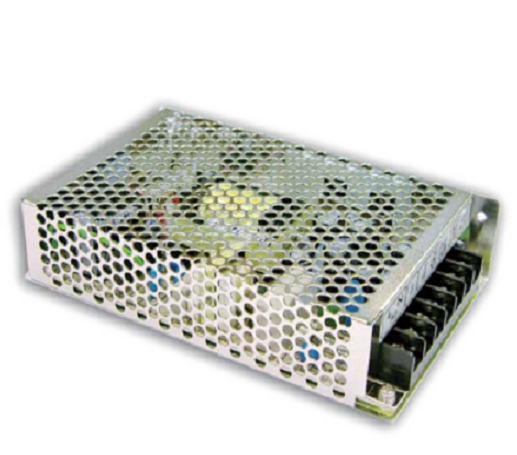

| RT-RS100 Series | 100 Watts | 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |
| RT-SP150 Series | 150 Watts | 24, 48 | 3000VAC | 100M Ohm/500VDC |
| RT-SP200 Series | 200 Watts | 24, 27, 48 | 3000VAC | 100M Ohm/500VDC |

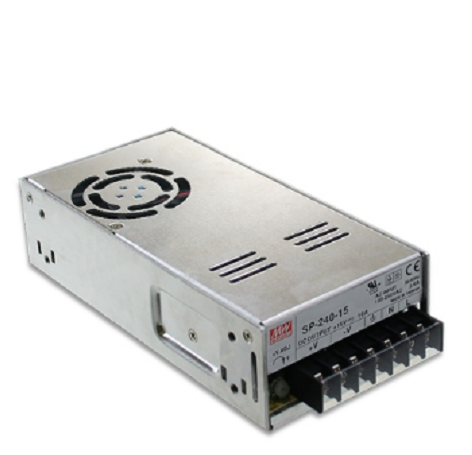

| RT-SP240 Series | 240 Watts | 24, 30, 48 | 3000VAC | 100M Ohm/500VDC |
|
| Relay PCB Model | Max Amps | Coil Voltages | Isolation I/P-O/P | Max Voltage |

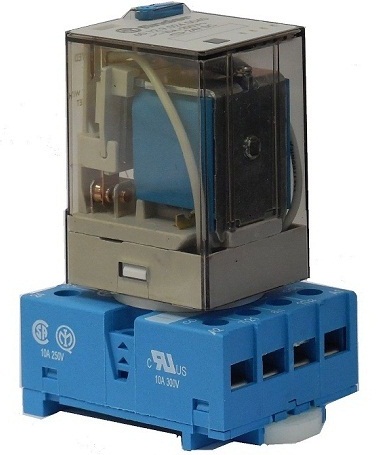

| MR-600 Relay AC | 10 amps | 6-240VAC | 2000VAC | 240VRMS |
| MR-600 Relay DC | 10 amps | 6-110VDC | 2000VAC | 240VRMS |
|
| Optical Power Circuit Barrier | Voltage Rating | Type of Isolation | | |

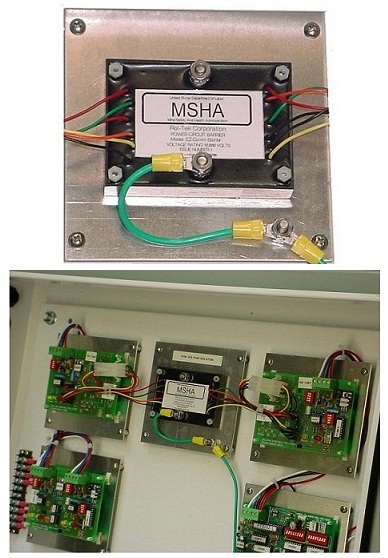

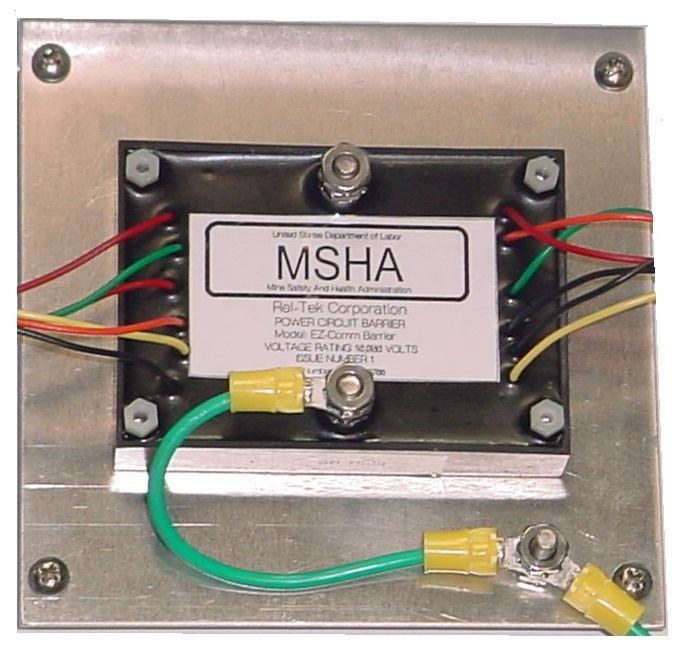

| EZ-Comm Barrier | 10,000 Volts | Optical | | |
|
