Digital Display

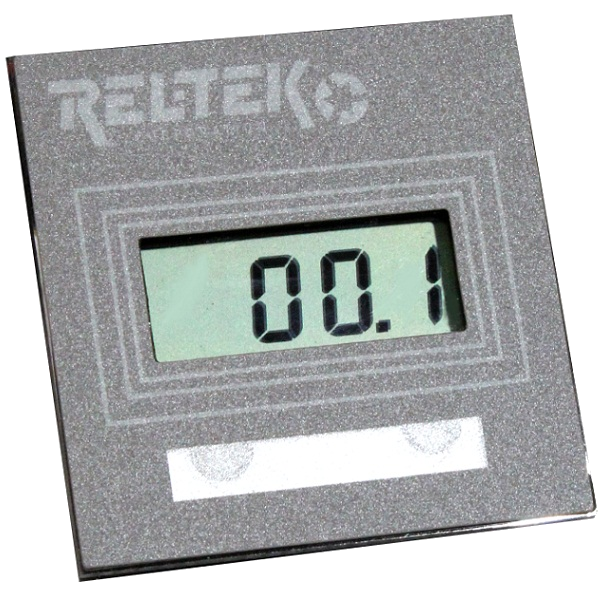

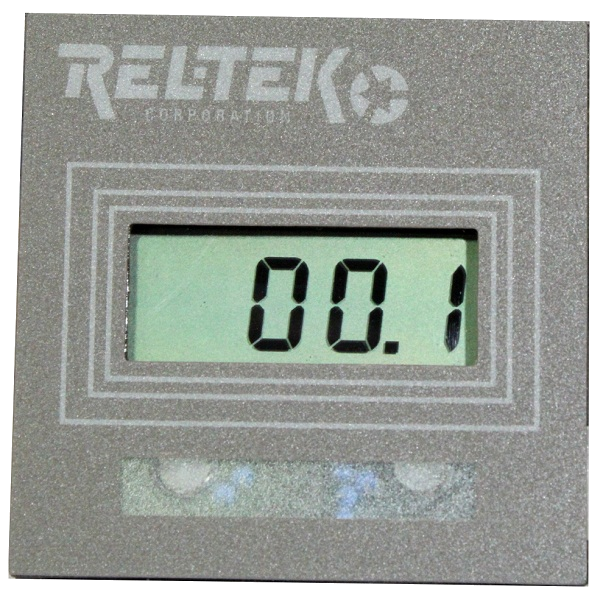

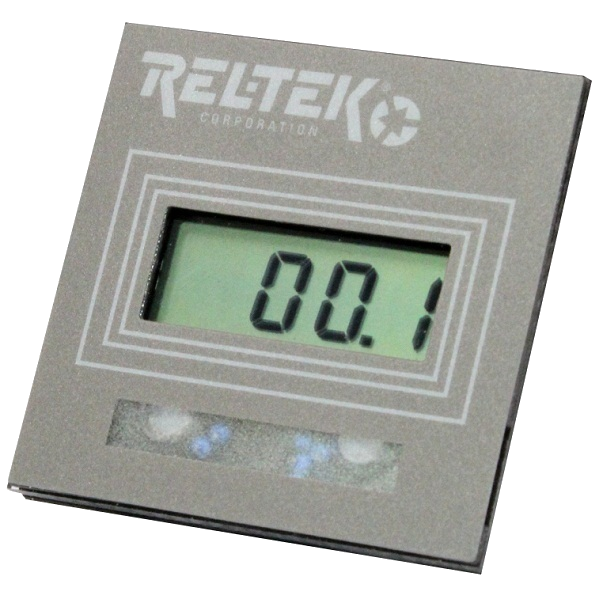

Digital Display Panel Meter (Product code: 7.3100)

Digital Display
(click on the image to enlarge)
Parameters: Digital Display Panel Meter, 3 1/2 digit LCD, 4-20ma input

The Digital Display Panel Meter provides remote indication of a sensor's reading.

The DD420 features are:

  1. - 3 1/2 digit Liquid Crystal Display (LCD).
  2. - 3x3" face.
  3. - Compatible with all Rel-Tek sensors.
  4. - 4-20 ma, selectable range and decimal.
  5. - 10-30 VDC excitation.
  6. - Zero/span adjustments.
  7. - Standard 2 3/4" panel Mount.
  8. - MSHA classified with all Rel-Tek sensors.
